Kriya

Media Installation

Spatial media system integrating light,
sound and control infrastructure

Technical Director Nuanu Creative City, Bali · 2025

Quick Facts

Credits

Sculpture — Daniel Popper
(b. 1983, South Africa)

danielpopper.com

Media installation — Mikhail Chizhikovskii

Context

Outdoor media installation

Aurora Media Park

Part of a permanent immersive trail of interactive installations

Location

Bali, Indonesia

Nuanu Creative City

nuanu.com

Role

Technical Director

System architecture

Implementation oversight

Scope

Spatial lighting

Spatial audio

Tropical jungle installation

Team

Core team: 3

+ local installation crew

+ external specialists

Role & Contribution

Full-cycle technical responsibility:
system design, implementation and integration

Technical Direction

  • Visual system definition (within technical framework)
  • System architecture design
  • Technical specifications
  • Cross-system integration (light / audio / control)
  • Team coordination
  • Installation management (local crew coordination)
  • Environmental integration (landscape adjustments and concealment)

Management of Third-Party Contractors

  • Audio engineering (system tuning & spatial setup)
  • Hardware production (SPI controllers)
  • Fabrication (structures, mounts, enclosures)

Direct Execution

  • LED system redesign (SPI spheres)
  • Laser system integration (internal installation)
  • Prism-based optical element (design & implementation)
  • International sourcing and logistics setup (China → Indonesia pipeline)
  • Server hardware selection

System architecture
and signal flow

System architecture and signal flow diagram

Key System Elements

Core components and their implementation

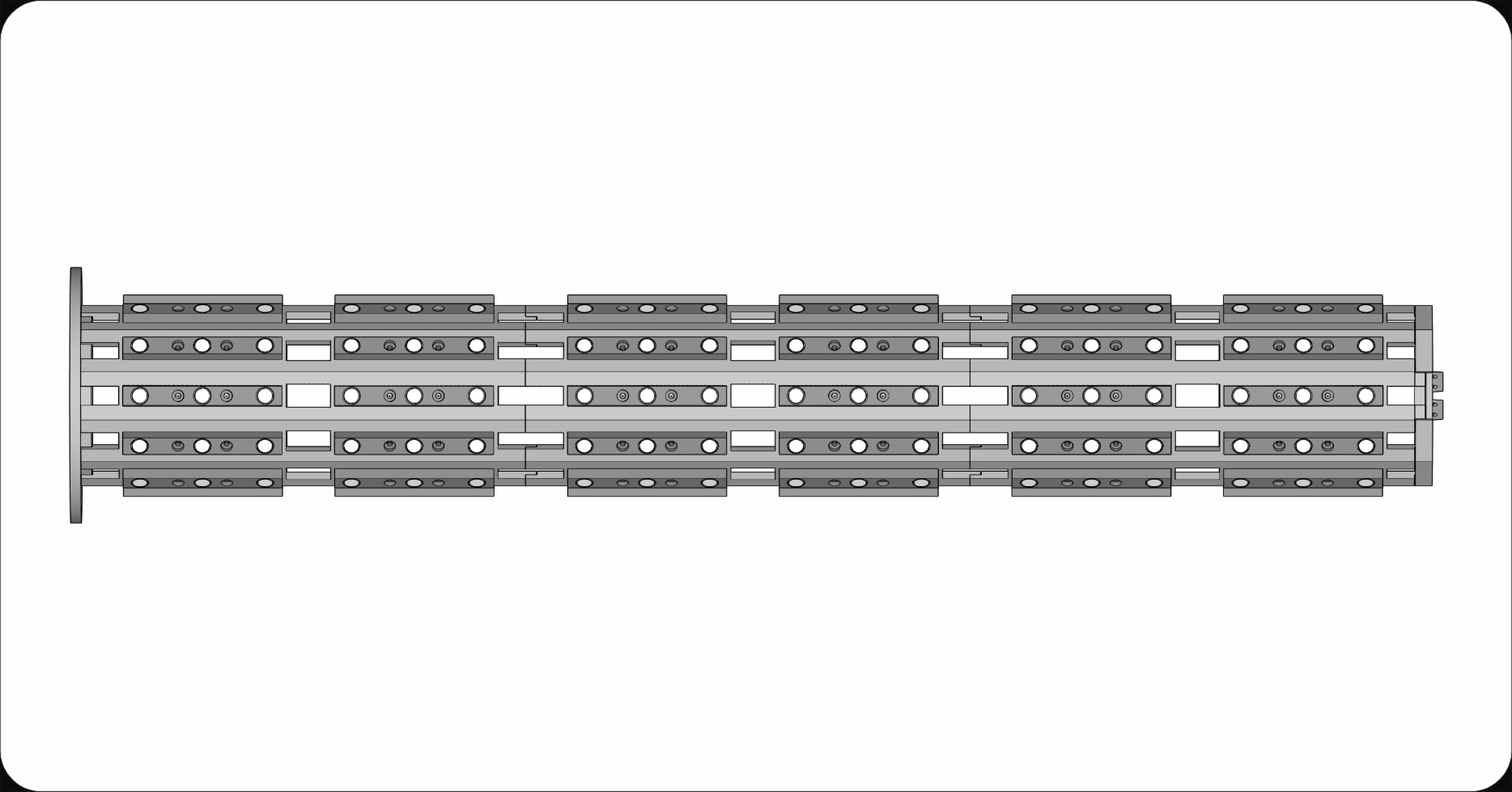

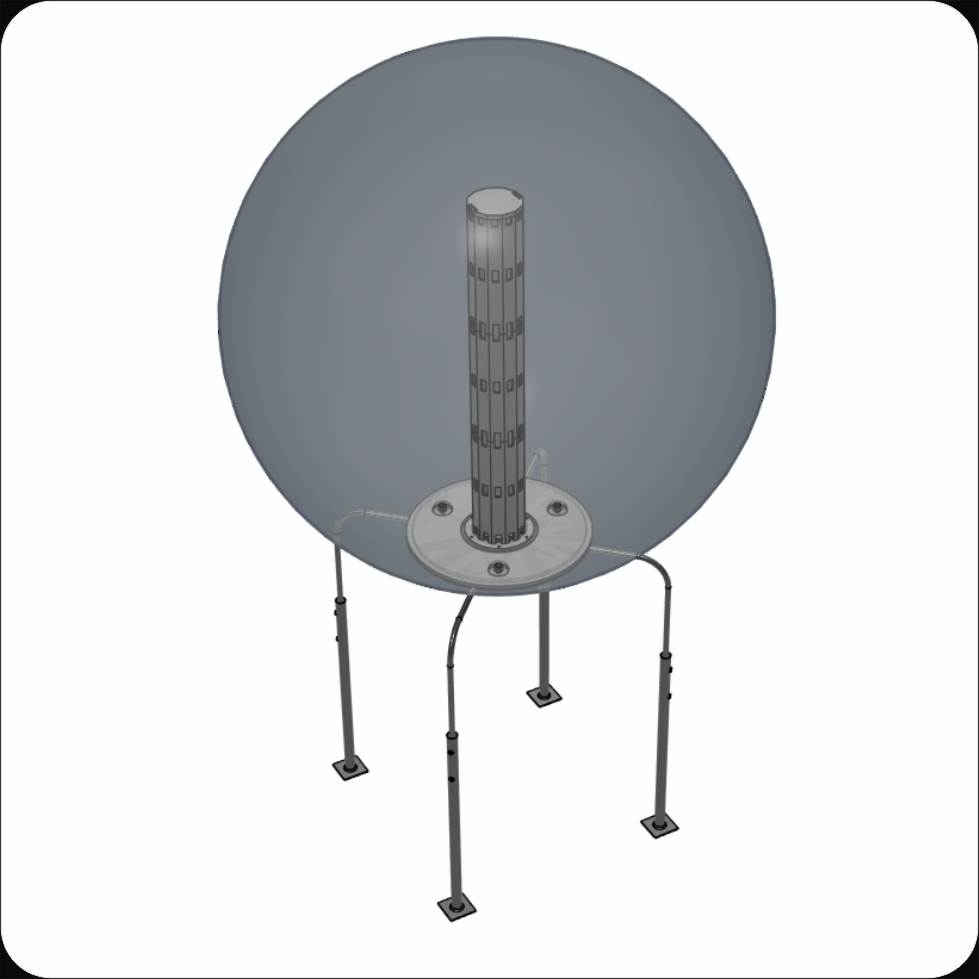

SPI lighting sphere — technical drawing Individual pixel LED bulb component

SPI Lighting Spheres

  • Custom LED system integrated into prefabricated spheres, fully rebuilt for SPI-based control
  • Replaced internal RGB modules with custom SPI clusters
  • Audio-reactive behavior driven by central system
  • Custom mounting and structural integration

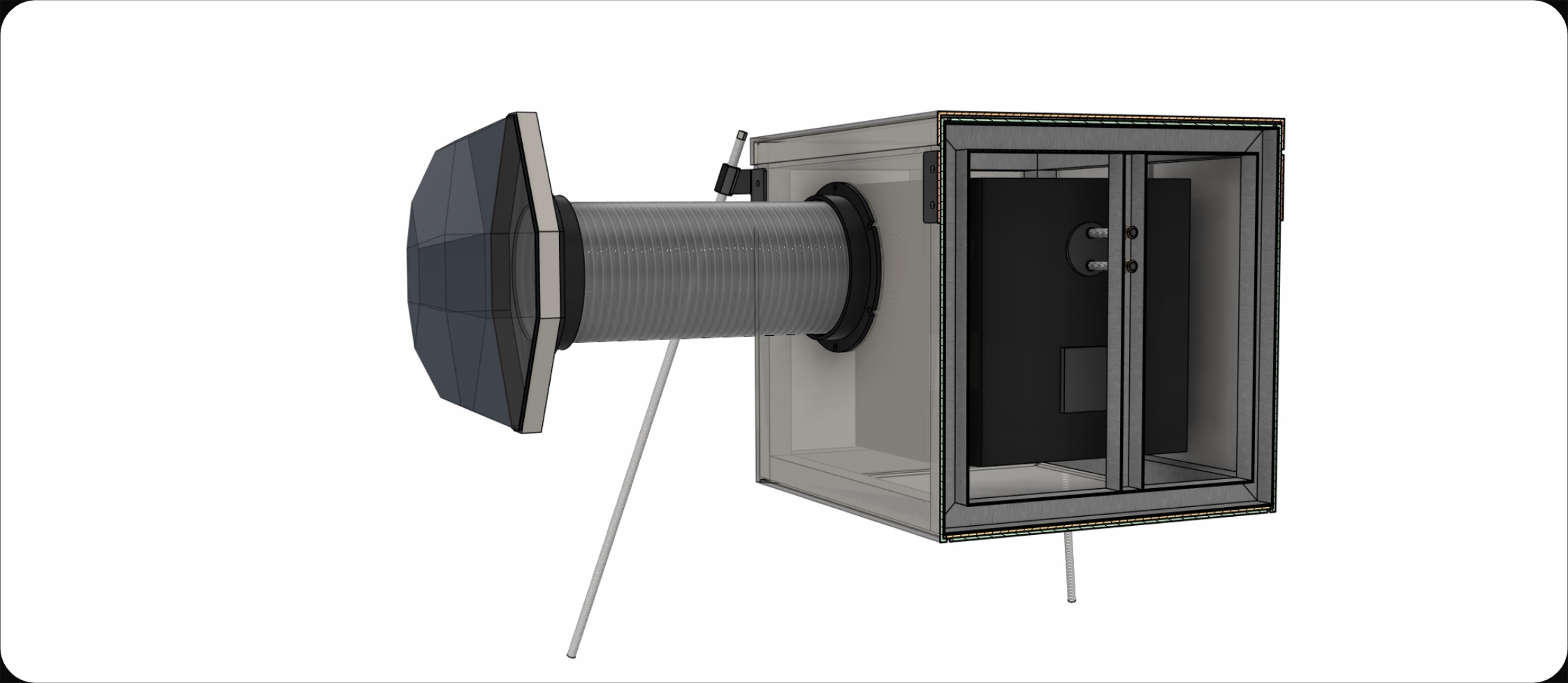

Laser and Optical System

  • Internal laser installation with custom prism for controlled light diffusion
  • Laser mounted inside sculpture
  • Custom blown-glass prism (hand-fabricated)
  • Manual alignment for safe operation in public space
  • Used as a spatial accent, separate from the core media logic
Optical laser system component

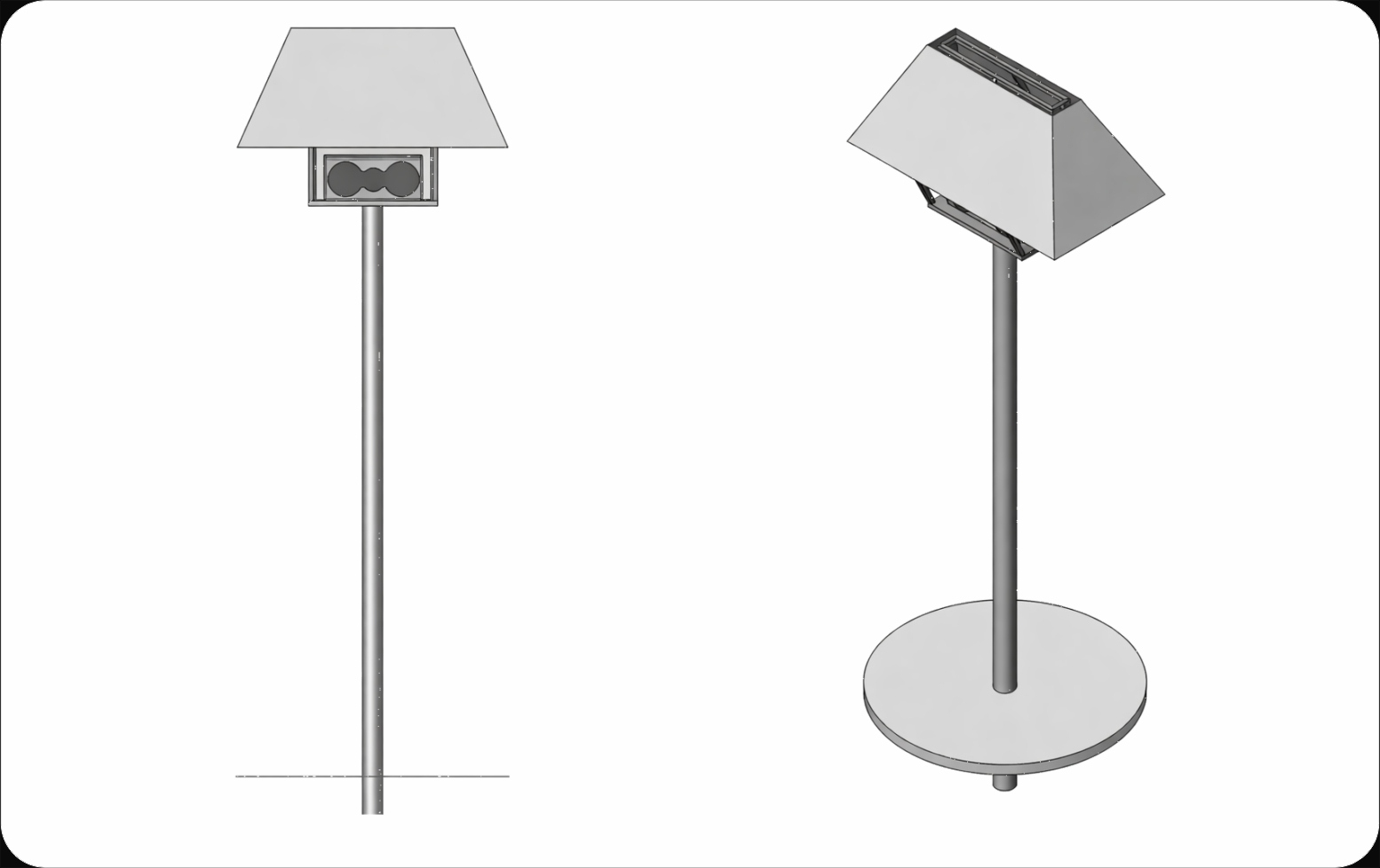

Custom speaker pillar structures — architectural drawing

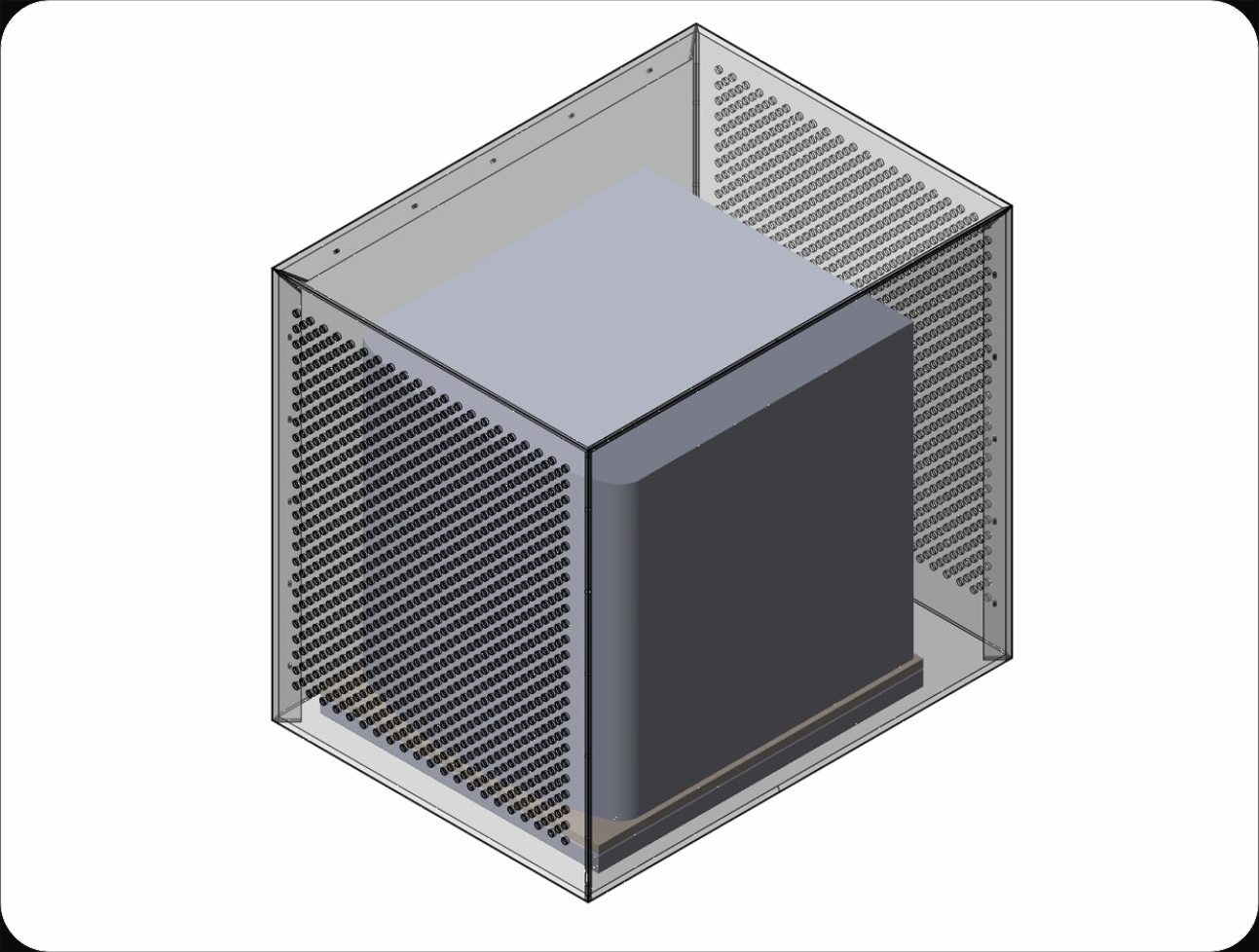

Subwoofer enclosure drawing

Spatial Audio System

  • Multi-point sound system designed for ambient playback and scheduled sessions
  • 4+1 speaker configuration
  • Custom-designed speaker structures (integrated with local architectural style)
  • Positioning optimized for spatial coverage
